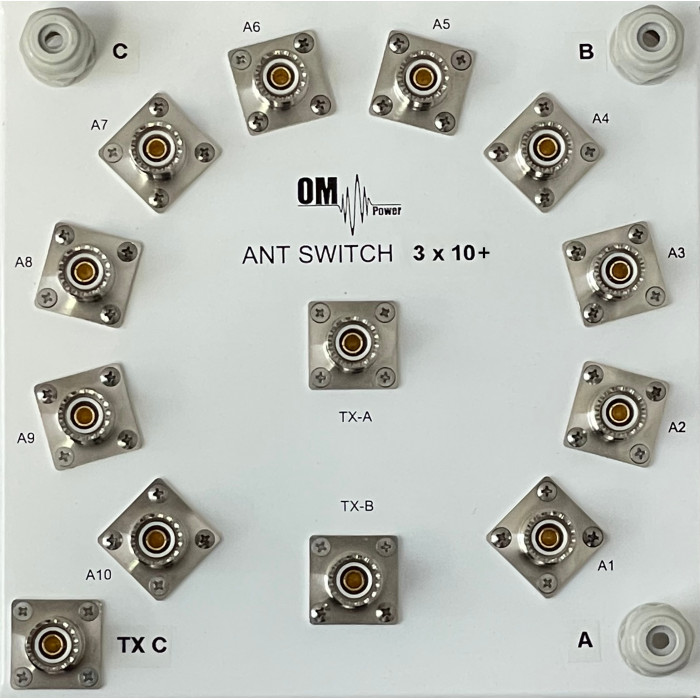

Antenna switch OM SW 3/10+
- Product Code: ANT-SW3/10+
- Stock: In Stock
-
-
Price Ex VAT:
990.00€
Shortwave plus 50 MHz Antenna Switch OM SW 3/10+ is equipped with BCD decoder to cooperate with OM Power automatic power amplifiers OM1700A+, OM2000A+, OM2501A, OM3501A and OM4001A. Of course, the antenna switch can be BCD controlled by various other devices that have a BCD code output (Yaesu BCD code).
Frequency range : 1.7 - 54 MHz
Characteristic impedance : 50 ohm
Number of radio ports : 3
Number of antenna ports : 10
Supply voltage : +12 to +15V DC
Selection of port : BCD code
Consumption : max. 150mA
Connectors : SO239 ( N type on request )
SWR: (depends on selected port – the worst case)
- 1.8 MHz: < 1,00 : 1
- 14 MHz: < 1,02 : 1
- 28 MHz: < 1,04 : 1
- 50 MHz: < 1,12 : 1
Isolation: (depends on ports – the worst case)
- 1,8 MHz: > 80 dB
- 14 MHz: > 65 dB
- 28 MHz: > 60 dB
- 50 MHz: > 54 dB
Insertion loss: (typical)
- 1.8 MHz < 0.01 dB
- 14 MHz < 0.02 dB
- 28 MHz < 0.03 dB
- 50 MHz < 0.05 dB
Power rating : ( depends on antenna SWR)
- up to 30 MHz
- SWR <1,2 :1............. < 5 KW
- SWR <1,5 : 1 ........... < 4 KW
- SWR < 2 : 1 ............. < 3 KW
- SWR < 3 : 1 ............. < 2 KW
- 50 MHz
- SWR <1,2 :1............. < 3 KW
- SWR <1,5 : 1 ........... < 2,5 KW
- SWR < 2 : 1 ............. < 2 KW
- SWR < 3 : 1 ............. < 1,5 KW
Operating temperature range : -30 to +60 °C
Dimensions: W 210 mm x H 120 mm x D 210 mm
(8,27") x (4,7") x (8.27")
Weight : 1.56 kg ( 3,44 lbs )
Download : Instruction manual EN
