Transformer type 1GS
- Product Code: TRA-1TT2280GSP2
- Stock: In Stock
-
-
Price Ex VAT:
345.00€

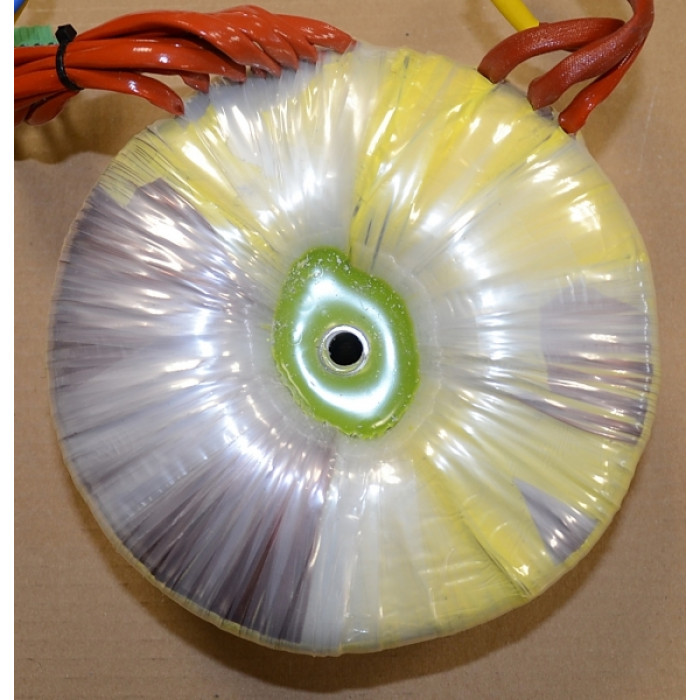

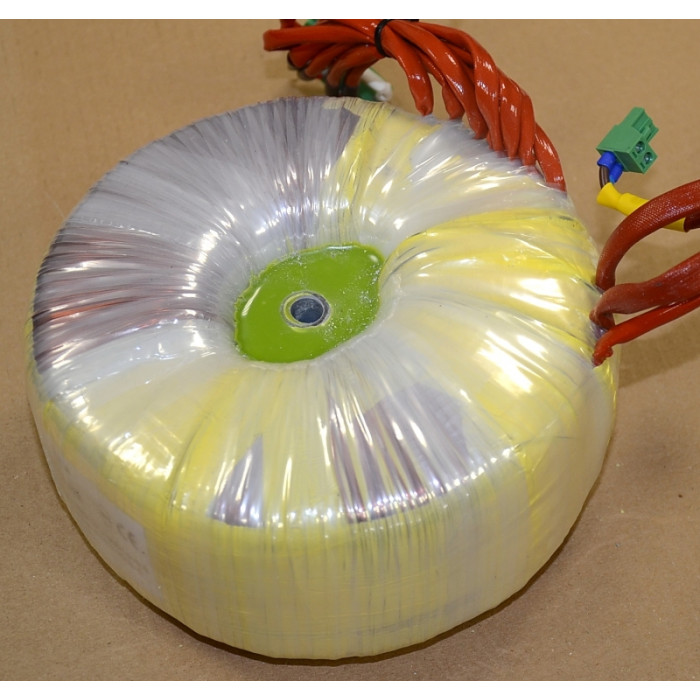

Toroidal transformer 2280 VA for our amplifier OM 1500.
Operating temperature: up to 40 °C
Necessary primary fusing: 20 A
Primary side parameters: AC, 1 phase, 50 Hz
Wiring:
blue wire - 0 V
1. brown wire - 210 V
2. brown wire - 220 V
3. brown wire - 230 V
Secondary side parameters:
S1: 0V/450V 1A blue-white
S2,3,4: 0V/580V 1A blue-red
S5: 0V/7V 6A blue-brown
S6: 0V/20V 2.5A blue-orange
S8: 0V/55V 0.1A blue-yellow
Dimensions
Diameter: 185 mm
Height: 100 mm
